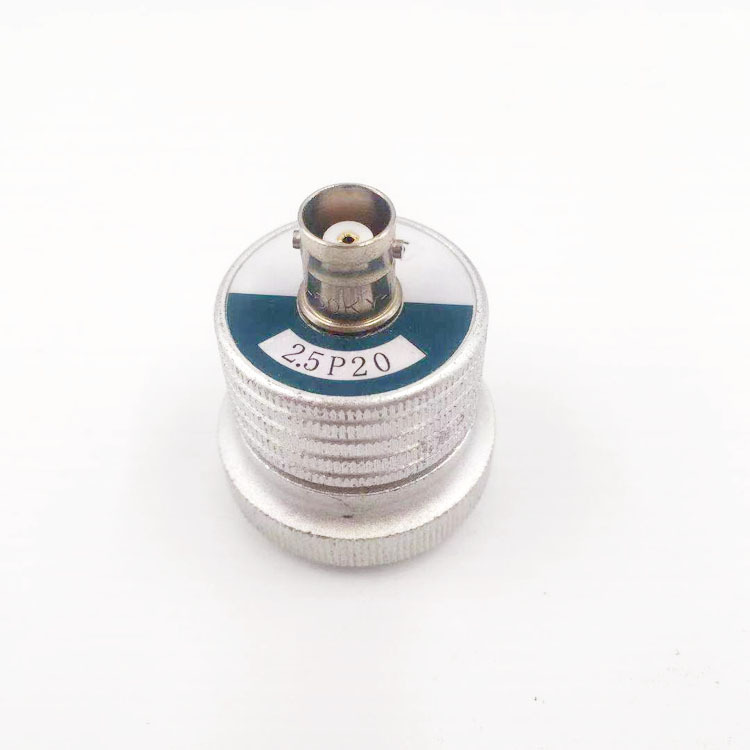

Name: Industrial ultrasonic detecing probe contact transducer 2.5P20 2.5P20
Brand: Industrial ultrasonic detecing probe contact transducer 2.5P20 2.5P20
SKU: 2.5P20
Price: 1 USD
Availability: InStock
Rating: 5 (125 reviews)

traits Galerie Description de produit Demandez une citation

traits

Caractéristiques

Model Number: 2.5P20

Diameter: 20mm

Element: Single

Wave: Longitudinal

Type: Contact

Frequency: 2.5MHz

Informations de base

Model Number: 2.5P20

Conditions de paiement et expédition

Packaging Details: Sealed Bag

Description de produit

Product Description

Contact probes are single element longitudinal wave probes intended for use in direct contact with a test piece and they consist of receptacles, cases, protective membrane, piezoelectric elements, sound-absorbing materials and other components.

The connectors of the probe cables are Q6 connectors for small element probes (Diameter=12mm) and Q9 connectors for other element probes.

The contact probes are widely used for the inspection of forgings, castings, rods, plates, shafts and etc.

Feature:

The piezoelectric elements are used for transmitting and receiving the ultrasonic waves.
The protective membrane is made of high hardness corundum film featuring high resistance to abrasion and corrosion.
The cases are made of aluminum alloy with the surface sanding and passivation.
The absorbing materials are used to absorb the back noise of the elements.
The receptacles are the electric signal interfaces for connecting an instrument with a probe cable.

Models:

Contact probes for Common use

Frequency(MHz)	Element size(mm)	Type	Case	Receptacle


0.5	20	0.5P30	A2	Q9
0.5	28	0.5P28	A3
1.25	14	1.25P14	A1
	20	1.25P20	A2
	28	1.25P28	A3
2.5	14	2.5P14	A1
	20	2.5P20	A2
	28	2.5P28	A3
5	14	5N14	A1
	14	5P14	A1
	20	5P20	A2

*The other contact probes are manufactured on a special basis to customers specifications.Contact us to discuss applications.

Miniature contact probe

Frequency(MHz)	Element size(mm)	Type	Case	Receptacle


2.5	6	2.5P6	A7	Q6
	8	2.5P8	A6
	10	2.5P10	A5
	12	2.5P12	A4
5	6	5P6	A4
	8	5P8	A7
	10	5P10	A6
	12	5P12	A5
10	6	10N6	A7
10	6	10P6	A7

*N: High damping narrow pulse probes
